For Engineering, Procurement, and Construction (EPC) companies, time is literally money. A delayed installation schedule due to complicated racking structures, missing components, or unexpected on-site cutting and welding can completely destroy a solar project's profit margin.

As a trusted engineering partner to global EPCs in over 80 countries, Xiamen Sunforson Power Co., Ltd designs mounting brackets specifically to streamline field deployment without compromising durability. In this comprehensive technical guide, we outline the best practices, pre-installation checks, and assembly protocols for installing commercial and utility-scale solar structures efficiently.

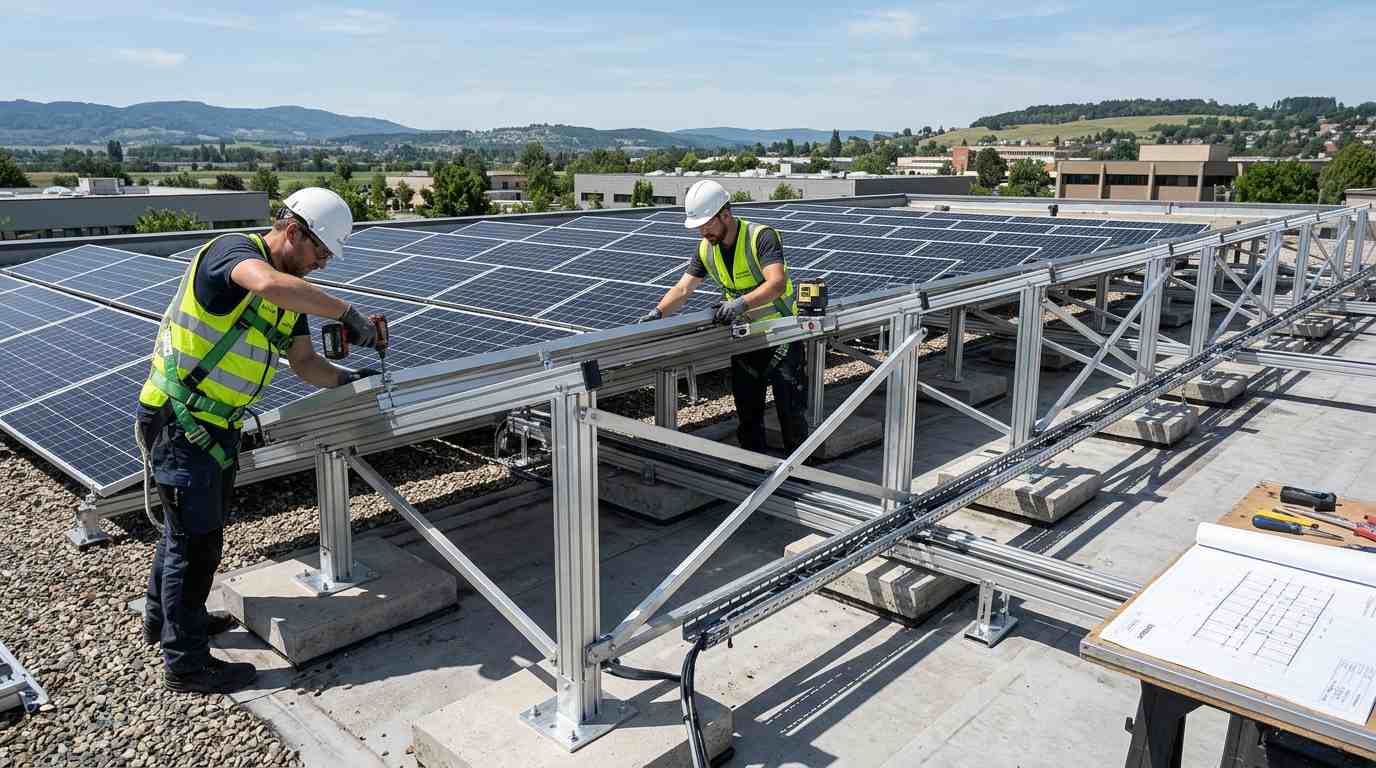

SunRack pre-assembled components ensure fast, error-free on-site installation

Phase 1: Site Audit and Pre-Installation Preparation

Before a single piece of metal is delivered to the site, extensive preparation is required to prevent costly delays during construction.

• Geotechnical Soil Testing: For ground-mount projects, EPCs must conduct mechanical pull-out and lateral load tests on the soil. This confirms the exact depth the steel piles or ground screws must be driven to resist wind uplift.
• Roof Structural Integrity Check: Before installing a solar roof mounting system, verify the load-bearing capacity of the building. Aging commercial roofs may require structural reinforcement to handle the added dead load of the ballasted concrete blocks or the aluminum rails.
• Tooling & Equipment Checklist: Ensure your crews are equipped with properly calibrated torque wrenches, laser levels, string lines, and the appropriate hydraulic pile-driving machinery if ramming steel posts.

Phase 2: Foundation and Anchoring Execution

The integrity of the entire megawatt array begins with the foundation. The preparation phase differs drastically depending on the type of system you are deploying:

• Deploying Ground Mounts: When installing a ground solar mounting system, surveyors must mark the exact GPS coordinates for every pile. Hydraulic driving machines must maintain strict vertical alignment; even a slight angle deviation (over 2 degrees) at the base will multiply into a massive, unworkable misalignment at the top rail.
• Deploying Commercial Carports: A commercial solar carport mounting system requires deep excavation. Concrete footings must be poured and cured with embedded heavy-duty anchor bolts. These bolts must be precisely positioned using structural templates provided by the manufacturer before the concrete sets.

Phase 3: Racking Assembly (The SunRack Pre-Assembled Advantage)

Once the foundations or roof attachments are secured, it is time to build the structural skeleton. Traditional systems require workers to sort through hundreds of loose bolts, nuts, and brackets, assembling everything from scratch in the dirt.

To solve this labor bottleneck, Sunforson engineers highly pre-assembled tripods, foldable support frames, and pre-fitted clamps in the factory. EPC field teams simply unfold the main supports, attach them to the foundation, and lock them in place. The main horizontal rails are then connected using simple splice kits. This "plug-and-play" methodology eliminates the need for any on-site cutting, welding, or drilling, ensuring the protective anodized or hot-dip galvanized coatings remain perfectly intact and rust-free.

Phase 4: Module Placement, Clamping, and QA/QC

The final phase is securing the solar panels to the rails and performing Quality Assurance (QA). Follow these critical steps:

• Align the Bottom Row: Always start from the lowest point of the array. Use a string line or laser level to ensure the first row is perfectly straight. This sets the standard for the entire table.
• Strict Torque Control: Utilize calibrated torque wrenches to tighten mid clamps and end clamps to the manufacturer's exact specifications (usually between 15-20 Nm depending on the bolt). Over-tightening can crack the solar glass or warp the panel frame, while under-tightening will lead to dangerous panel slippage during high winds. Implement a "torque-mark" system using a paint pen to verify every bolt has been checked.
• Electrical Grounding Bonding: Ensure that grounding lugs, copper wires, and grounding clips (which pierce the anodized layer of the aluminum rail and panel frame) are properly installed to create a continuous, safe electrical grounding path to the earth.
